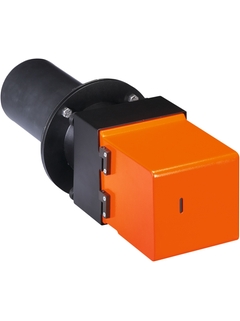

>DUSTHUNTER SB100 particle measuring device

>DUSTHUNTER SB100 particle measuring device
>Краткие характеристики

  • Process temperature

    –40 °C ... +600 °C

  • Conformities

    Approved for plants requiring approval
    2001/80/EC (13. BImSchV)
    2000/76/EC (17. BImSchV)
    27. BImSchV
    TA-Luft (Prevention of Air Pollution)
    EN 15267
    EN 14181
    MCERTS
    2010/75/EU
    U.S. EPA PS-11 compliant

  • Посмотреть все характеристики

Область применения

The DUSTHUNTER SB100 is a type-approved measuring device for dust at very low to medium concentrations in challenging applications, e. g., in hot or corrosive gases. The measurement is based on the backward scattering of light. Installation is from one side only. Two different penetration depths are possible. Automated compensation of background radiation, therefore no light absorber required. An automated check of the zero and reference point is on board in the device.

  • Emission monitoring of power stations and waste incineration plants

  • Monitoring of dust concentrations downstream of filter plants

  • Monitoring of dust loads in factory workshops

  • Control of fresh air supplies and exhaust air plants


Device properties:

  • For very low to medium dust concentrations

  • One-sided installation

  • Contamination check

  • Automated thorough check of zero and reference point

  • Automated compensation of background radiation, therefore no light absorber required

  • For medium to large duct diameters
